198CD-60 GENTEC 110V Electrically-Heated CO2 Flowmeter Regulator

$675.00 $465.00

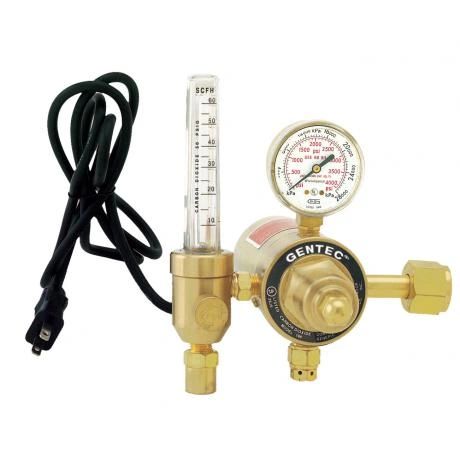

198CD-60 GENTEC® 110 VAC Electrically Heated CO2 Flowmeter Regulator



198CD-60 GENTEC Electrically Heated Carbon Dioxide CO2 Flowmeter Regulator is designed for applications requiring high gas flow rates, up to 60 SCFH without freezing.

  • Regulator is preset at 50 PSI
  • Thermostatically-controlled built-in electric hearter keeps the CO2 warn and provide continuous duty cycle without freezing.
  • 110 VAC / 190W Heater is Standard
  • Voltage output will vary in some locations
  • Please specify your voltage requirements when ordering
  • Flowmeter is backpressure compensated to ensure accurate reading when line restrictions are present

  • Forged brass body and housing cap
  • Sintered bronze inlet filter

  • Weight: 6 lbs - shipping weight

  • Use this regulator only with non-siphoned standard CO2 cylinders

TECHNICAL SPECS:

  • Gas Service: Carbon Dioxide, CO2

  • Outlet Pressure PRESET 50 PSI

  • Inlet Gauge 2”, 4000 PSI

  • Outlet Connection 5/8"-18 RH(F)

  • Flowmeter 60 SCFH

  • Inlet Connection, Carbon Dioxide Regulator NUT CGA320

  • CAUTION Use this regulator only with non-siphoned standard CO2 cylinders

*INFORMATION SOURCES:
VICTOR Industrial Equipment Catalog Form No. 65-1308 (1-/16/13) and website
GENTEC HVAC Plumbing Catalog CAT-HVAC1012, GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
FIREPOWER Catalog 83-1409 (02/21/14)
TURBOTORCH  NO. 56-1252C (5/15/11) and website as of 1/15/15
WORTHINGTON Catalog-2013_rev3 and website as of 1/15/15

*Information provided for information purposes only.  Subject to change by source owner and/or torchtips.com
*
Source GENTEC HVAC Plumbing Catalog CAT-HVAC1012, GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
