• 172C-3 GENTEC Acetylene Cutting Tip

    $24.00 $12.00

    172C-3 GENTEC® Acetylene Cutting Tip


    172C-3 GENTEC® Acetylene Cutting Tip Compatible To, Equivalent with:
    • VICTOR® 3-3-101 part 0331-0016
    • UNIWELD® 3-101-3
    • FirePower® 3-3-101 part 6700-24432
    Acetylene cutting tips are precision machined from high quality copper alloys for durability. The gas passages for single piece acetylene tips are accurately swage-formed and shaped on polished mandrels for smooth, efficient gas flow.  All tips are 100% flame tested.

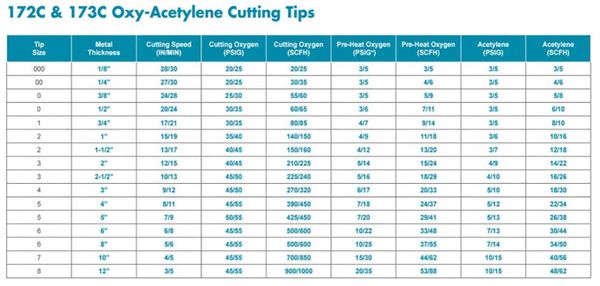

    Acetylene Cutting Tip Sizes:

    172C-000  172C-00  172C-0 172C-1  172C-2  172C-3  172C-4  172C-5  172C-6


    Metal Thickness
    Inches



    Size



    VICTOR
    Part Number
    3-3-101



    Cutting
    Oxygen

    ***
    (psig)



    Cutting Oxygen
    (SCFH)



    Preheat
    Oxygen

    *(psig)


    Preheat
    Oxygen
    (SCFH)



    Acet.

    (psig)



    Acet.

    ****
    (SCFH)



    Speed
    ipm



    Kerf

    Width

    1”

    2

    0331-0016

    35/40

    140/150

    4/9

    11/18

    3/6

    10/16

    15/19

    .09


    *Applicable for three hose machine torch only.  With two hose cutting torch, preheat pressure is set by GENTC Equipment data compiled using mild steel as test material

    the cutting oxygen.
    **For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC series torch and 3/8” hose when using
    tip size 6 or larger.
    ***All pressures are measured at the regulator using 25’ x ¼” hoe through tip size 5 and 25’ x 3/8” hose for
     tip size 6 and larger.
    ****Oxygen consumption is 1.1 times the acetylene under neutral flame conditions

    VICTOR Industrial Equipment Catalogue Form No. 65-1308 (1-/16/13)
    GENTEC Gas Welding and Cutting Catalogue Cat-GWACA01012

    *Information provided for information purposes only.  Subject to change by source owner and/or torchtips.com

    Torchtips.com cannot guarantee the accuracy or timeliness of the information.
    ****Information is proprietorially assembled, aggregate from sources, enriched and owned by TorchTips,LLC, Torchtools Inc, and Bibow Industries, Inc.
