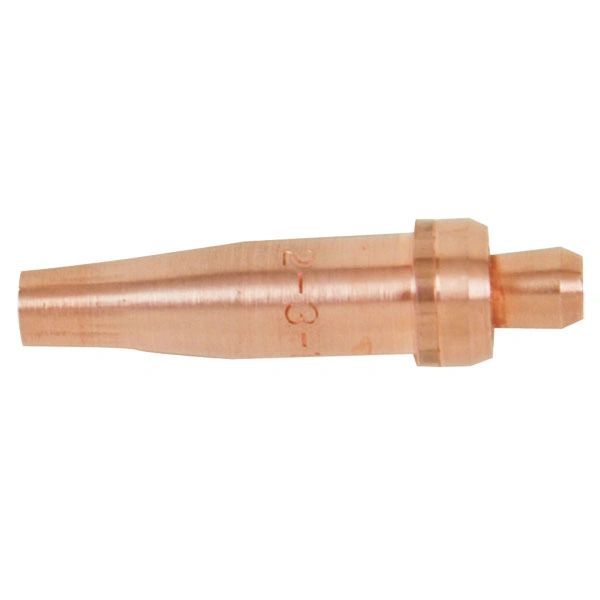

1-101-000 UNIWELD® Acetylene Style Cutting Tip: VICTOR 000-1-101, 0330-0003
Cutting Tips are precision machined from high quality copper alloys for durability.
The gas passages for single apiece acetylene tips are accurately swage-formed and
shaped on polished mandrels for smooth, efficient gas flow. Two piece tips for
alternate fuel gases feature an internal spline configuration that is of the latest
design, offering the optimum in cutting performance. All tips are 100% flame tested.
Metal Thickness
Inches
|
Size
|
VICTOR
Part Number
000-1-101
|
Cutting
Oxygen
***
(psig)
|
Cutting Oxygen
(SCFH)
|
Preheat
Oxygen
*(psig)
|
Preheat
Oxygen
(SCFH)
|
Acet.
(psig)
|
Acet.
****
(SCFH)
|
Speed
ipm
|
Kerf
Width
|
1/8” |
000 |
0330-0003 |
20/25 |
20/25 |
3/5 |
3/5 |
3/5 |
3/5 |
28/32 |
.04 |
GENTEC and VICTOR Equipment data compiled using mild steel as test material
*Applicable for three hose machine torch only. With two hose cutting torch, preheat pressure is set by
the cutting oxygen.
**For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC series torch and 3/8” hose when using
tip size 6 or larger.
***All pressures are measured at the regulator using 25’ x ¼” hoe through tip size 5 and 25’ x 3/8” hose for
tip size 6 and larger.
****Oxygen consumption is 1.1 times the acetylene under neutral flam conditions
.
INFORMATION SOURCE:
VICTOR Industrial Equipment Catalogue Form No. 65-1308 (1-/16/13)
GENTEC Gas Welding and Cutting Catalogue Cat-GWACA01012
*Information provided for information purposes only. Subject to change by source owner and/or torchtips.com
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
|
