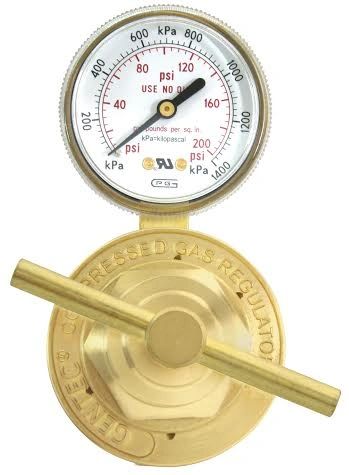

152LX-125 GENTEC Nitrogen Pipeline Regulator

$189.75 $182.00

152LX-125 GENTEC® NITROGEN PIPELINE Regulator

Compatible to OR interchangeable with© VICTOR® L250D-250 part 0781-1245, UNIWELD® RUHL8210

GENTEC Pipeline Regulators are designed for use with gas distribution systems in MEDIUM to HEAVY DUTY flow applications, with maximum inlet pressure of 350 PSIG.
  • NOT FOR USE ON CYLINDERS or TANKS
  • Forged Brass Body and Housing Cap
  • Single Stage Construction
  • Stem-type seat assembly for more reliable seating performance
  • Delrin cap bushing for smooth adjustments
  • 2" gauges for easy reading
  • 2" diaphragm
  • Weight: 2 lbs 10 oz
  • Conforms to CGA E-4 Standard for gas pressure regulators
TECHNICAL INFORMATION
  • MAX inlet pressure 350 PSI
  • MAX delivery pressure 5-125 PSI
  • Inlet Gauge NONE
  • Outlet Gauge 2", 200 PSI
  • Inlet Connection 1/4" NPT (F) Female Port
  • Outlet Connection 1/4" NPT (F) Female Port

*INFORMATION SOURCES:

VICTOR Industrial Equipment Catalog Form No. 65-1308 (1-/16/13) and website
GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
FIREPOWER Catalog 83-1409 (02/21/14)
TURBOTORCH  NO. 56-1252C (5/15/11) and website as of 1/15/15
WORTHINGTON Catalog-2013_rev3 and website as of 1/15/15
GOSS Equipment Catalog Form Number D-460 04/12 and website as of 1/15/15


*Information provided for information purposes only.  Subject to change by source owner and/or torchtips.com
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
****Information is proprietorially assembled from sources, enriched and owned by TorchTips LLC, TorchTools Inc. and Bibow Industries Inc.
