194CE-60-36 GENTEC Gas Saving HEATED FlowMeter Regulator CO2
194CE-60-36 GENTEC® Gas Saving HEATED Flowmeter CO2

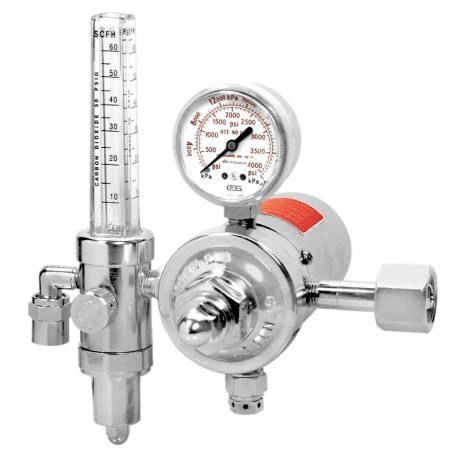

194CE-60-36 GENTEC RGENTEC Gas Saving HEATED FlowMeter Regulator for CO2 Carbon Dioxide CO2 is designed for applications requiring high gas flow rates, up to 60 SCFH without freezing.
Gas Service CO2 or Carbon Dioxide
-
Thermostatically-controlled built-in electric heater keeps the CO2 warm and provides a continuous duty cycle without freezing
• Regulator is preset at 50PSIG
• Single-stage regulator
• Chrome plated forged brass body and housing cap
• Flowmeter is backpressure compensated to ensure accurate reading when line restrictions are present
• Sintered bronze inlet filter
• Flowmeter with built-in stabilizer for gas saving
• External relief valve
• Gas saving range: 20-50%*
• 2” high-pressure gauge for easy reading
• Raw Weight: 4 lbs 11 oz - Outlet Pressure = 50 PSI
- Inlet Gauge 2", 4000PSI
- Flowmeter SCFH 60
- Inlet Connection CGA320
- Outlet Connection 5/8"-18RH(F)
-
Supply Voltage 36VAC, 190W
*INFORMATION SOURCES:
GENTEC HVAC Plumbing Catalog CAT-HVAC1012, GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
*Information provided for information purposes only. Subject to change by source owner and/or torchtips.com
*Source GENTEC HVAC Plumbing Catalog CAT-HVAC1012, GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
