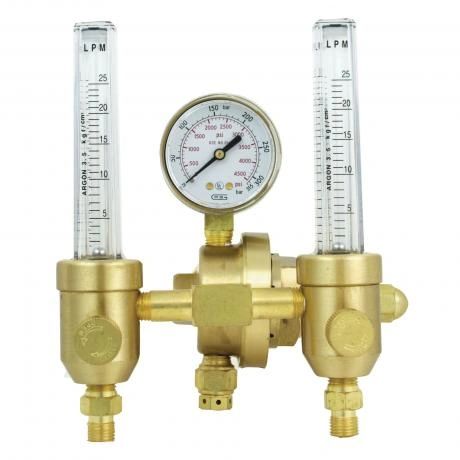

196AR-60 GENTEC Dual Flowmeter Regulator
196AR-60 GENTEC Dual Flowmeter Regulator
SMITH EQUIPMENT® H1970-580(80SCFH) Equivalent©™*
- Gas Service ARGON, AR/CO2 MIX
- Regulator is preset at 50 PSIG
- Inlet Gauge 2”, 4000PSI
- FlowMeter 60 SCFH
- Inlet Connection CGA580
- Outle Connection 5/8” - 18RH(F)
- Body machined from class “A” brass
- Single-stage construction
- Monitoring two separate gas flow settings at the same time
- 2” gauge and two 195FM flowmeters
- Polycarbonate flow tube and hood are impact resistant for maximum durability and service life
- Calibrated for argon, helium and 75% argon / 25% CO2 mixed gases
- Flowmeter is backpressure compensated to ensure accurate readings when line restrictions are present
- Sintered bronze inlet filter
- Weight: 5 lbs with packaging
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
- UL listed
