198CD-60 GENTEC 220V Electrically-Heated CO2 Flowmeter Regulator

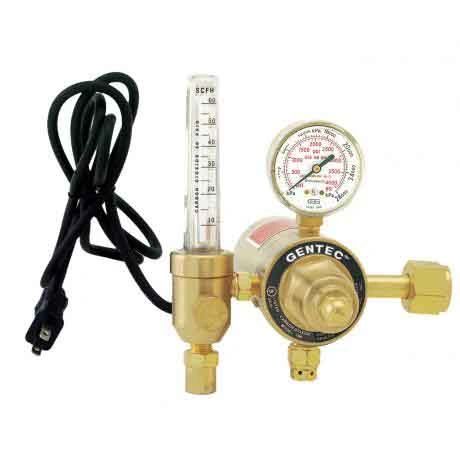

198CD-60 GENTEC® 220 VAC Electrically Heated CO2 Flowmeter Regulator
198CD-60
GENTEC 220 Volt Electrically Heated Carbon Dioxide CO2 Flowmeter Regulator is designed
for applications requiring high gas flow rates, up to 60 SCFH without freezing.
- Regulator is preset at 50 PSI
- Thermostatically-controlled built-in electric hearter keeps the CO2 warn and provide continuous duty cycle without freezing.
- 220 VAC / 190W Heater is Standard
- Voltage output will vary in some locations
- Please specify your voltage requirements when ordering
- Flowmeter
is backpressure compensated to ensure accurate reading when line
restrictions are present
- Forged brass body and housing cap
- Sintered
bronze inlet filter
- Weight: 6
lbs - shipping weight
- Use this regulator only with non-siphoned standard CO2
cylinders
TECHNICAL
SPECS:
- Gas Service: Carbon Dioxide, CO2
- Outlet Pressure
PRESET 50 PSI
- Inlet Gauge 2”,
4000 PSI
- Outlet
Connection 5/8"-18 RH(F)
- Flowmeter 60 SCFH
- Inlet
Connection, Carbon Dioxide Regulator NUT CGA320
- CAUTION Use this regulator only with non-siphoned standard CO2 cylinders
