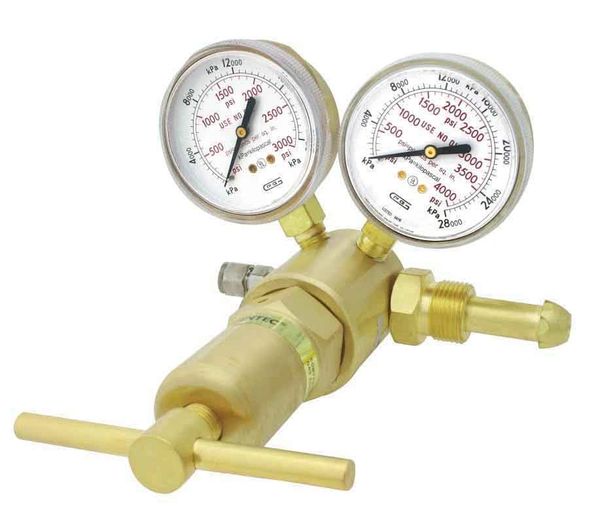

• 591H-1500 GENTEC High Pressure Hydrogen Methane Regulator

    $1,500.00 $1,000.00

    591H-1500 GENTEC High Pressure Hydrogen Methane Regulator

    Compatible, Equivalent, Interchangeable©™* VICTOR® SR4G-350 part 0781-1424
    Compatible, Equivalent, Interchangeable©™* HARRIS®  8700-1500-350

    591H-1500  High Pressure Hydrogen Methane Piston Regulators feature a reliable piston design for precise gas control at high inlet and delivery pressures rating up to 4500 PSIG. Like all GENTEC® quality products, the 591H-1500 High-Pressure Hydrogen Methane piston regulator provides superior performance and safety features. SEE FLOW RATE CHART picture

    • Body is machined from class "A" brass

    • PISTON type construction
    • Delrin cap bushing for smooth adjustments
    • Sintered bronze inlet filter
    • 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
    • 2-1/2" Pressure gauges for easy reading
    • Weight 4 lbs
    • Ship Weight 6 lbs
    • Conforms to CGA-E4 standards for gas pressure regulators
    • MAX inlet pressure 3000 PSI
    • MAX delivery pressure 100 - 1500 PSI
    • Inlet Gauge 2-1/2", 4000 PSI
    • Outlet Gauge 2-1/2", 2000 PSI
    • Inlet Connection / Regulator Nut = CGA350
    • Outlet Connection 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
