• 591IN-3000-680 GENTEC Inert Gas Ar He N2 High Pressure Regulator

    $1,550.00 $1,000.00

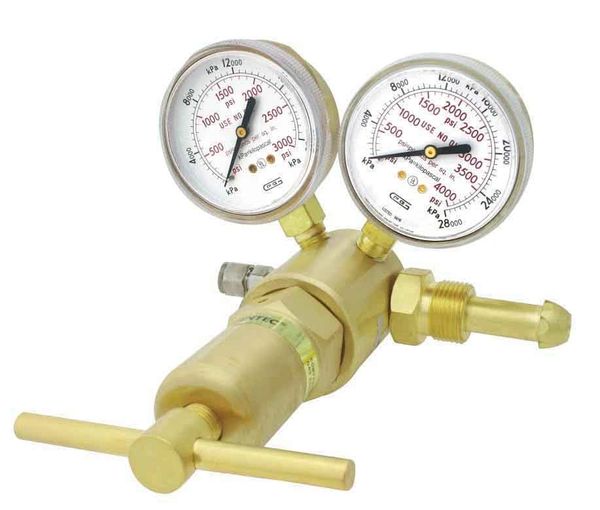

    591IN-3000-680 GENTEC Inert Gas Ar He N2 High Pressure Regulator



    Compatible, Equivalent, Interchangeable©™* VICTOR® SR4J-680 part 0781-1450,
    Compatible, Equivalent, Interchangeable©™* HARRIS®  8700-3000-680

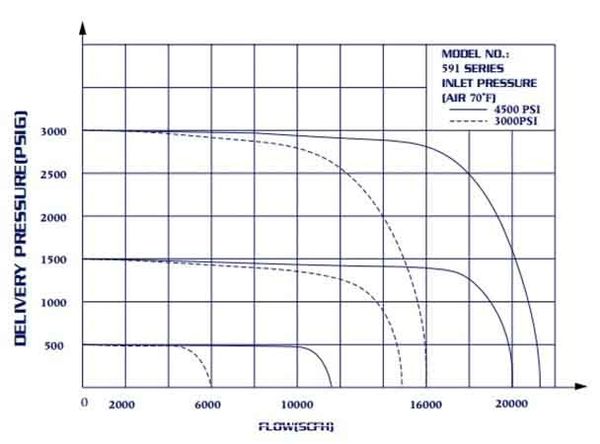

    591IN-3000-680 Inert Gas Ar, He, N2  High Pressure Piston Regulators feature a reliable piston design for precise gas control at high inlet and delivery pressures rating up to 4500 PSIG. Like all GENTEC® quality products, the 591IN-3000-680 Argon, Helium Nitrogen High-Pressure piston regulator provides superior performance and safety features. SEE FLOW RATE CHART picture

    • Body is machined from class "A" brass

    • PISTON type construction
    • Delrin cap bushing for smooth adjustments
    • Sintered bronze inlet filter
    • 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
    • 2-1/2" Pressure gauges for easy reading
    • Weight 4 lbs
    • Ship Weight 6 lbs
    • Conforms to CGA-E4 standards for gas pressure regulators
    TECHNICAL INFORMATION
    • MAX inlet pressure 5500 PSI
    • MAX delivery pressure 200 - 3000 PSI
    • Inlet Gauge 2-1/2", 6000 PSI
    • Outlet Gauge 2-1/2", 4000 PSI
    • Inlet Connection / Regulator Nut = CGA680
    • Outlet Connection 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
    *INFORMATION SOURCES:

    VICTOR Industrial Equipment Catalog Form No. 65-1308 (1-/16/13) and website
    GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
    FIREPOWER Catalog 83-1409 (02/21/14)
    TURBOTORCH  NO. 56-1252C (5/15/11) and website as of 1/15/15
    WORTHINGTON Catalog-2013_rev3 and website as of 1/15/15
    GOSS Equipment Catalog Form Number D-460 04/12 and website as of 1/15/15

    *Information provided for information purposes only.  Subject to change by source owner and/or torchtips.com
    Torchtips.com cannot guarantee the accuracy or timeliness of the information.
    ****Information is proprietorially assembled from sources, enriched and owned by TorchTips LLC, TorchTools Inc. and Bibow Industries Inc.
    (C) (TM) ALL RIGHTS RESERVED  NOT TO BE STOLEN, STORED, COPIED OR REFERENCED in any many on any device or in any digital or reference code
