• 591Q-1500 GENTEC AIR High Pressure Regulator

    $1,500.00 $1,000.00

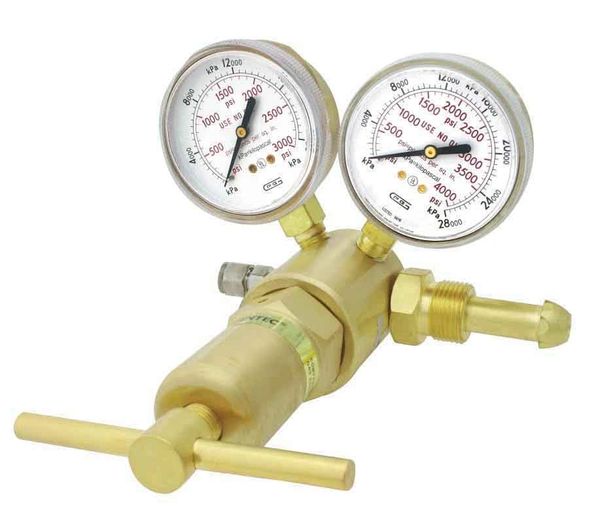

    591Q-1500 GENTEC AIR High Pressure Regulator

    Compatible, Equivalent, Interchangeable©™* VICTOR® SR4G-346 part 0781-1422
    Compatible, Equivalent, Interchangeable©™* HARRIS ®  8700-1500-346

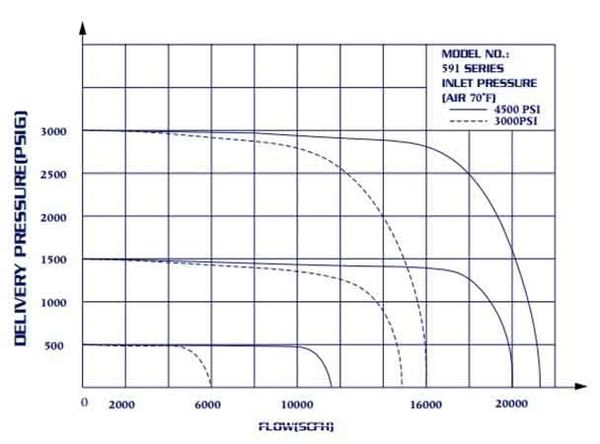

    591Q-1500  AIR High Pressure Piston Regulators feature a reliable piston design for precise gas control at high inlet and delivery pressures rating up to 4500 PSIG. Like all GENTEC® quality products, the 591Q-1500 AIR High-Pressure piston regulator provides superior performance and safety features. SEE FLOW RATE CHART picture

    • Body is machined from class "A" brass

    • PISTON type construction
    • Delrin cap bushing for smooth adjustments
    • Sintered bronze inlet filter
    • 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
    • 2-1/2" Pressure gauges for easy reading
    • Weight 4 lbs
    • Ship Weight 6 lbs
    • Conforms to CGA-E4 standards for gas pressure regulators
    TECHNICAL INFORMATION
    • MAX inlet pressure 3000 PSI
    • MAX delivery pressure 100 - 1500 PSI
    • Inlet Gauge 2-1/2", 4000 PSI
    • Outlet Gauge 2-1/2", 2000 PSI
    • Inlet Connection / Regulator Nut = CGA346
    • Outlet Connection 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK) Outlet
    *INFORMATION SOURCES:

    VICTOR Industrial Equipment Catalog Form No. 65-1308 (1-/16/13) and website
    GENTEC Gas Welding and Cutting Catalog Cat-GWACA01012 and website as of 1/15/15
    FIREPOWER Catalog 83-1409 (02/21/14)
    TURBOTORCH  NO. 56-1252C (5/15/11) and website as of 1/15/15
    WORTHINGTON Catalog-2013_rev3 and website as of 1/15/15
    GOSS Equipment Catalog Form Number D-460 04/12 and website as of 1/15/15

    *Information provided for information purposes only.  Subject to change by source owner and/or torchtips.com
    Torchtips.com cannot guarantee the accuracy or timeliness of the information.
