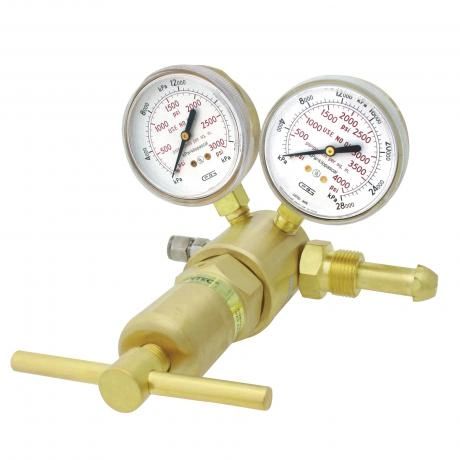

HARRIS 8700-1500-540 Oxygen 1500 PSI Style Regulator
8700-1500-540 HARRIS Oxygen 1500 PSI Style Regulator
8700-1500-540 HARRIS O2 Oxygen 1500 PSI Style High Pressure Piston Regulator features a reliable piston design for
precise gas control at high inlet and delivery pressures rating up to 4500
PSIG. The 8700-1500-540 HARRIS Oxygen 1500 PSI High-Pressure style piston regulator provides superior performance and safety

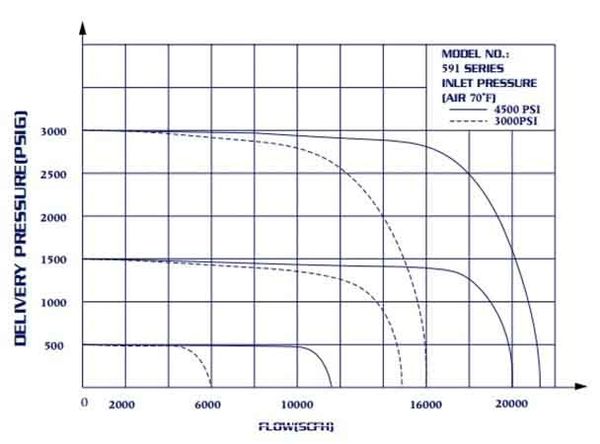

features. SEE FLOW RATE CHART picture
- Body is machined from class "A" brass
- PISTON type construction
- Delrin cap bushing for smooth adjustments
- Sintered bronze inlet filter
- 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK™) Outlet
- G25B-4000 2-1/2", Dual Scale, 1/4" NPT Pressure gauges for easy reading
- Weight 4 lbs
- Ship Weight 6 lbs
- Conforms to CGA-E4 standards for gas pressure regulators
- VICTOR® SR4G-540 Equivalent©™*
- HARRIS® 8700-1500-540 Equivalent©™*
- WESTERN® RS-9-15 Equivalent©™*
- MAX inlet pressure 3000 PSI
- MAX delivery pressure 100 - 1500 PSI
- Inlet Gauge 2-1/2", 4000 PSI
- Outlet Gauge 2-1/2", 2000 PSI
- Inlet Connection = Regulator Nut = CGA540
- Outlet Connection 1/4" Stainless Steel Compression-Tube Fitting (GENLOCK™) Outlet
