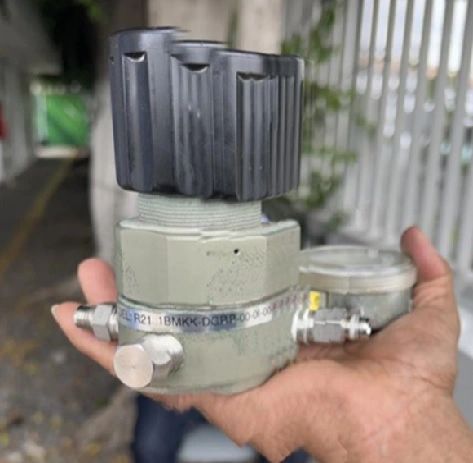

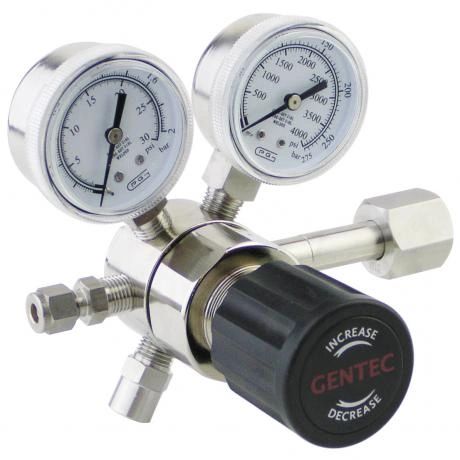

R21BMK-DGP-00-00-P GENTEC High Purity Single Stage Low Flow
R21BMK-DGP-00-00-P GENTEC® High Purity Single Stage Low Flow

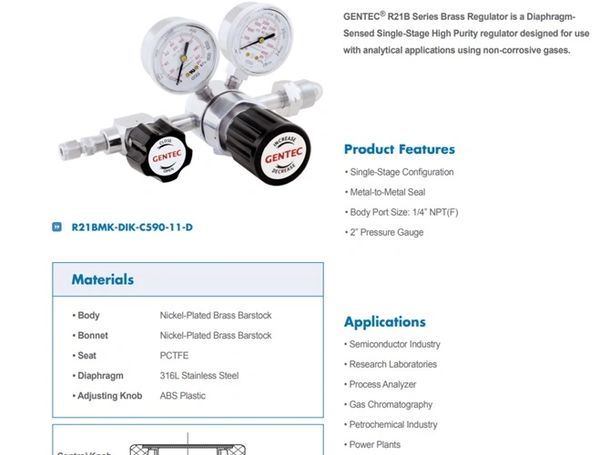

GENTEC® R21B Series Brass Regulator is a Diaphragm-Sensed Single-Stage High Purity regulator designed for use with analytical applications using non-corrosive gases.
Features
• Single-Stage Configuration
• Metal-to-Metal Seal
• Body Port Size: 1/4” NPT(F)
• 2” Pressure Gauge

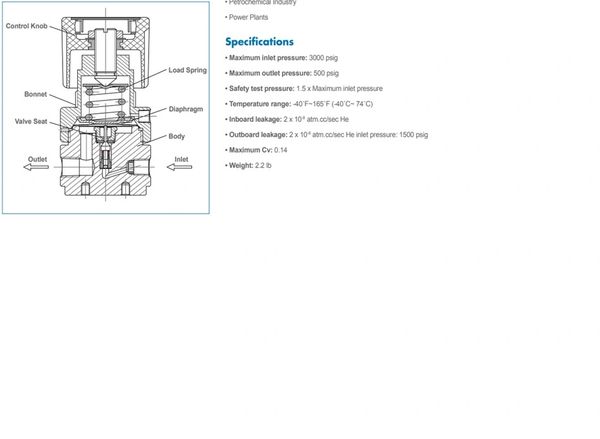

Maximum inlet pressure: 3000 psig
• Maximum outlet pressure: 500 psig
• Safety test pressure: 1.5 x Maximum inlet pressure
• Temperature range: -40˚F~165˚F (-40˚C~ 74˚C)
• Inboard leakage: 2 x 10-8 atm.cc/sec He
• Outboard leakage: 2 x 10-8 atm.cc/sec He inlet pressure: 1500 psig
• Maximum Cv: 0.14
• Weight: 2.2 lb
Body: Nickel-Plated Brass Barstock
• Bonnet: Nickel-Plated Brass Barstock
• Seat: PCTFE
• Diaphragm: 316L Stainless Steel
• Adjusting Knob: ABS Plastic
• Semiconductor Industry
• Research Laboratories
• Process Analyzer
• Gas Chromatography
• Petrochemical Industry
• Power Plants
- UL listed
-
Subject to Equivalency Rules*. Due to COVID, Supply chain, Trade Embargoes, Shipper, Vendor issues you may receive a mill-spec equivalent, import, domesti

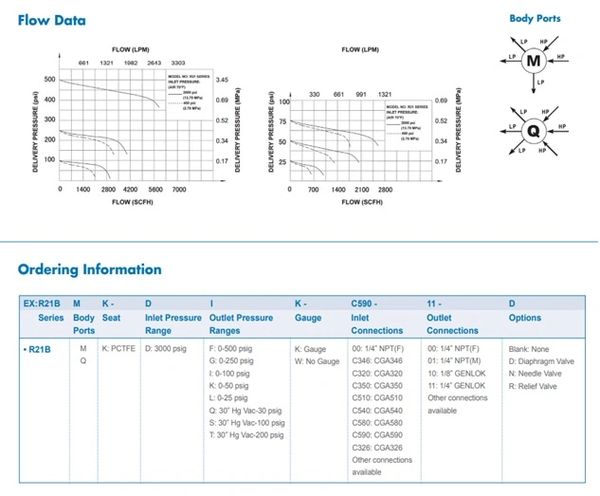

M
G: 0-250 psig
W: psig/bar
C346: CGA346
01: 1/4” NPT(M)
N: Needle Valve
-
K: 0-50 psig
C350: CGA350
11: 1/4” GENLOK
