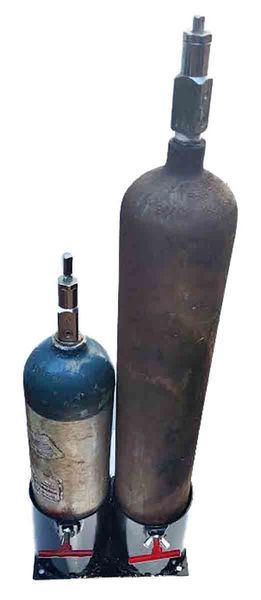

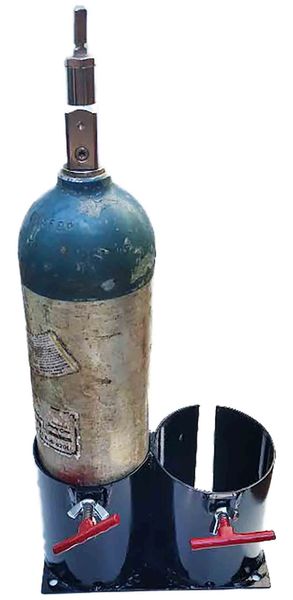

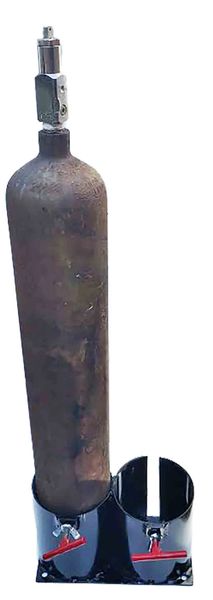

Twin Floor Mounted D  E Oxygen Cylinder Brackets

Bibow Industries’ patented D or E Twin medical oxygen tank holder for ALL trucks, vans, ambulances.  Made from 3/16" mild steel.  This Ultimate twin D or E medical oxygen holder is FULLY welded and has 4+ holes for through bolts attachment to vehicle’s floor.  Tank holders are engineered with channels or troughs on the bottom to allow for condensation, water or gas to escape.  SAFETY – the patented oxygen Tank Holders contain two locking red "T" handles with locking Wing Nut to purposefully enable users to “LOCK” the D or E Oxygen Tanks into the 02 tank holder sleeve- all with a simple twist.  Constructed from rigid steel to exceed ALL D.O.T. and O.S.H.A Type 2 gas holder requirements.  Painted with RUST-OLEUM® epoxy spray paint – “BECAUSE RUST SUCKS!©™”

Purposefully engineered to last a lifetime!

• Prevents Oxygen Tank from falling over, tipping or being ejected
• 6" inch tall medical Oxygen Tank Sleeve - receiving section
  6" tall sleeve surrounds and protects base of oxygen tank from vehicle side impact
• 3/16" - 1/4" Base Plate measures 5" wide x 10" long
• 3/16"thick  steel Oxygen Tank receiving sleeve

• 3/16" steel bottom plate with 4+ through-bolt attachment holes - locks holder into vehicle

• 3/16" steel bottom plate takes TANK IMPACT, NOT the floor of vehicle

• Approx 4.4" diameter for D or E  Oxygen Tanks

• Masterfully welded together INSIDE and OUT - lasts a lifetime!

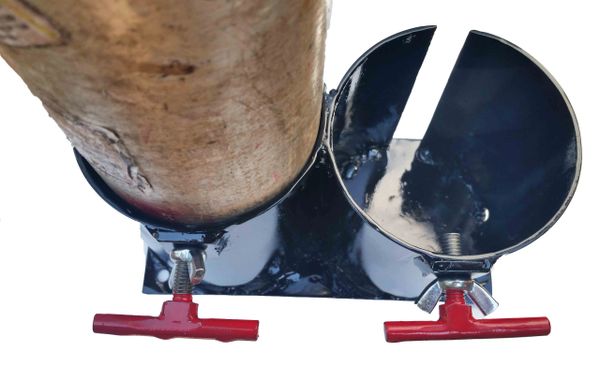

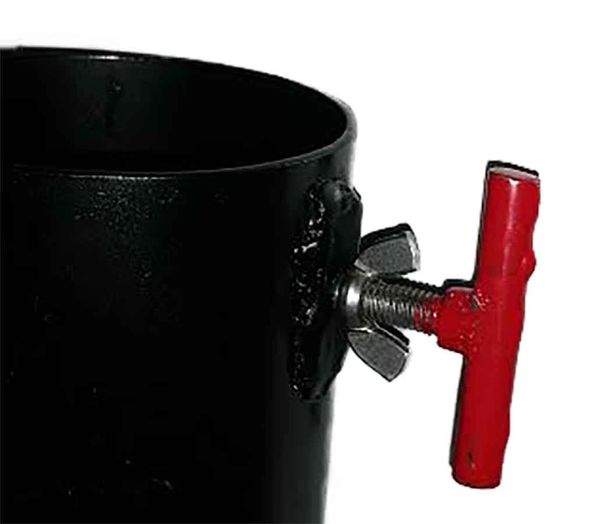

• 2 Threaded locking RED "T" Handle to lock the Tanks into the Sleeve Holders - tanks can't fall out

• T-Handles have locking Wing-Nuts / Jam-Nuts
• Weighs over 10 lbs

• RUST-OLEUM® epoxy paints “BECAUSE RUST SUCKS!©™”

• Empowers Ambulance owners / end users to DEMAND vehicle insurance premium REDUCTION!
