172C-000 GENTEC® Acetylene
Cutting Tip
172C-000 GENTEC® Acetylene Cutting Tip Compatible To, Equivalent with:
- VICTOR® 000-3-101 part 0331-0002
- UNIWELD® 3-101-000
- FirePower® 000-3-101 part 6700-2438
Acetylene cutting tips are precision machined from high quality copper alloys for durability. The gas passages for single piece acetylene tips are accurately swage-formed and shaped on polished mandrels for smooth, efficient gas flow. All tips are 100% flame tested.

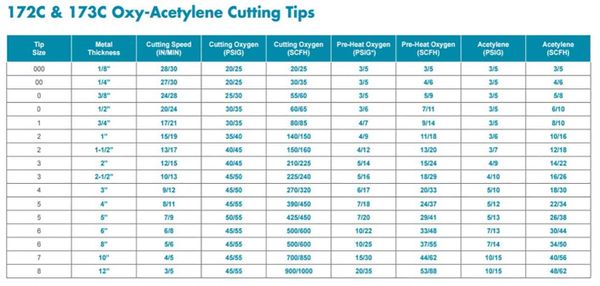

Acetylene Cutting Tip Sizes:
172C-000 172C-00 172C-0 172C-1 172C-2 172C-3 172C-4 172C-5 172C-6
Metal Thickness
Inches
|
Size
|
VICTOR
Part Number
000-3-101
|
Cutting
Oxygen
***
(psig)
|
Cutting Oxygen
(SCFH)
|
Preheat
Oxygen
*(psig)
|
Preheat
Oxygen
(SCFH)
|
Acet.
(psig)
|
Acet.
****
(SCFH)
|
Speed
ipm
|
Kerf
Width
|
1/8” |
000 |
0331-0002 |
20/25 |
20/25 |
3/5 |
3/5 |
3/5 |
3/5 |
28/32 |
.04
|
GENTC Equipment data compiled using mild steel as test material
*Applicable for three hose machine torch only. With two hose cutting torch, preheat pressure is set by
the cutting oxygen.
**For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC series torch and 3/8” hose when using
tip size 6 or larger.
***All pressures are measured at the regulator using 25’ x ¼” hoe through tip size 5 and 25’ x 3/8” hose for
tip size 6 and larger.
****Oxygen consumption is 1.1 times the acetylene under neutral flame conditions
VICTOR Industrial Equipment Catalogue Form No. 65-1308 (1-/16/13)
GENTEC Gas Welding and Cutting Catalogue Cat-GWACA01012
