172C-1 GENTEC® Acetylene Cutting Tip Compatible To, Equivalent with:
-
VICTOR® 1-3-101 part 0331-0014
- UNIWELD® 3-101-1
-
FirePower® 1-3-101 part 6700-2441
- ATTC 3-101-1
- Due to tariffs, part is subject to Equivalency Rules and part may be GENTEC, ATTC, OEM, Import or Domestic
Acetylene cutting tips are precision machined from high quality copper alloys for durability. The gas passages for single piece acetylene tips are accurately swage-formed and shaped on polished mandrels for smooth, efficient gas flow. All tips are 100% flame tested.

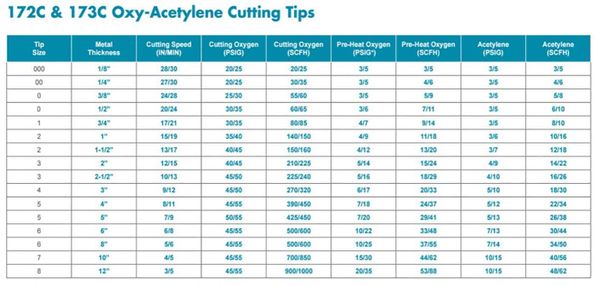

Acetylene Cutting Tip Sizes:
172C-000 172C-00 172C-0 172C-1 172C-2 172C-3 172C-4 172C-5 172C-6
Metal Thickness
Inches
|
Size
|
VICTOR
Part Number
1-3-101
|
Cutting
Oxygen
***
(psig)
|
Cutting Oxygen
(SCFH)
|
Preheat
Oxygen
*(psig)
|
Preheat
Oxygen
(SCFH)
|
Acet.
(psig)
|
Acet.
****
(SCFH)
|
Speed
ipm
|
Kerf
Width
|
3/4” |
1 |
0331-0014 |
30/35 |
80/35 |
4/7 |
9/14 |
3/5 |
8/13 |
17/21 |
.07
|
|
*Applicable for three hose machine torch only. With two hose cutting torch, preheat pressure is set by GENTC Equipment data compiled using mild steel as test material
the cutting oxygen.
**For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC series torch and 3/8” hose when using
tip size 6 or larger.
***All pressures are measured at the regulator using 25’ x ¼” hoe through tip size 5 and 25’ x 3/8” hose for
tip size 6 and larger.
****Oxygen consumption is 1.1 times the acetylene under neutral flame conditions
VICTOR Industrial Equipment Catalogue Form No. 65-1308 (1-/16/13)
GENTEC Gas Welding and Cutting Catalogue Cat-GWACA01012
*Information provided for information purposes only. Subject to change by source owner and/or torchtips.com
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
****Information is proprietorially assembled, aggregate from sources, enriched and owned by TorchTips,LLC, Torchtools Inc, and Bibow Industries, Inc.
