172C-2 GENTEC® Acetylene Cutting Tip Compatible To, Equivalent with:
- VICTOR® 2-3-101 part 0331-0015
- UNIWELD® 3-101-2
- FirePower® 2-3-101 part 6700-2442
Acetylene cutting tips are precision machined from high quality copper alloys for durability. The gas passages for single piece acetylene tips are accurately swage-formed and shaped on polished mandrels for smooth, efficient gas flow. All tips are 100% flame tested.

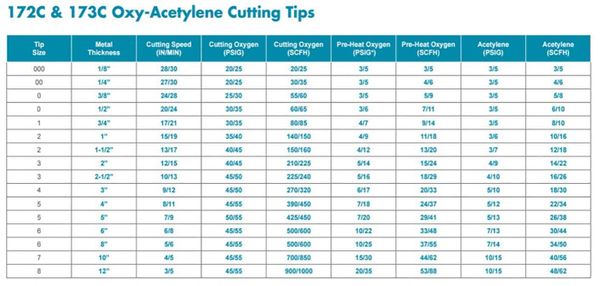

Acetylene Cutting Tip Sizes:
172C-000 172C-00 172C-0 172C-1 172C-2 172C-3 172C-4 172C-5 172C-6
Metal Thickness
Inches
| Size | VICTOR
Part Number
2-3-101 | Cutting
Oxygen ***
(psig) | Cutting Oxygen
(SCFH) | Preheat
Oxygen *(psig) |
Preheat
Oxygen
(SCFH)
| Acet. (psig) | Acet. ****
(SCFH) | Speed
ipm | Kerf Width | 1” | 2 | 0331-0015 | 35/40 | 140/150 | 4/9 | 11/18 | 3/6 | 10/16 | 15/19 | .09 |
*Applicable for three hose machine torch only. With two hose cutting torch, preheat pressure is set by GENTC Equipment data compiled using mild steel as test material
the cutting oxygen.
**For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC series torch and 3/8” hose when using
tip size 6 or larger.
***All pressures are measured at the regulator using 25’ x ¼” hoe through tip size 5 and 25’ x 3/8” hose for
tip size 6 and larger.
****Oxygen consumption is 1.1 times the acetylene under neutral flame conditions VICTOR Industrial Equipment Catalogue Form No. 65-1308 (1-/16/13)
GENTEC Gas Welding and Cutting Catalogue Cat-GWACA01012 *Information provided for information purposes only. Subject to change by source owner and/or torchtips.com
Torchtips.com cannot guarantee the accuracy or timeliness of the information.
