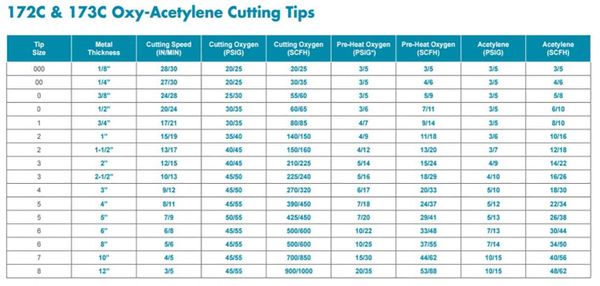

Metal Thickness
Inches
|
Size
|
VICTOR
Part Number
6-3-101
|
Cutting
Oxygen
***
(psig)
|
Cutting Oxygen
(SCFH)
|
Preheat
Oxygen
*(psig)
|
Preheat
Oxygen
(SCFH)
|
Acet.
(psig)
|
Acet.
****
(SCFH)
|
Speed
ipm
|
Kerf
Width
|
|
6”
|
6
|
0331-0019
|
50/55
|
425/450
|
7/20
|
29/41
|
5/13
|
26/38
|
7/9
|
.15
|
GENTC Equipment
data compiled using mild steel as test material
*Applicable for
three hose machine torch only. With two hose cutting torch,
preheat pressure is set by
the cutting oxygen.
**For best results use Gentec 163L-21-FA torch or VICTOR ST2600FC
series torch and 3/8” hose when using
tip size 6 or larger.
***All pressures are measured at the regulator using 25’ x ¼” hoe
through tip size 5 and 25’ x 3/8” hose for
tip size 6 and larger.
****Oxygen consumption is 1.1 times the acetylene under neutral flame
conditions
